A Mansfield Property Owner’s Guide to Electrical Panel Upgrades

October 7, 2026

A Mansfield TX electrical panel upgrade keeps older homes and rentals safer, supports modern loads, and may meet code when you add circuits or EV charging. A.T. Electric LLC helps Mansfield and DFW owners plan capacity, permits, and clean installs so the work fits real use—not guesswork.


Key takeaways

  • Undersized or outdated panels limit new appliances, HVAC, and charging.
  • A licensed local electrician assesses load, grounding, and service size first.
  • Permits and inspections protect insurance and resale in Mansfield.
  • Plan downtime, panel location, and future circuits before the swap.
licensed electrician inspecting an open residential breaker panel in a Mansfield TX garage workshop

When does a Mansfield home need a panel upgrade?


Most Mansfield and DFW property owners need a panel upgrade when breakers trip often, the box is full, aluminum wiring or outdated main lugs show risk, or you add heat pumps, workshops, or EV chargers that exceed safe capacity—our team sizes the service before any swap.


Which Mansfield TX electrical panel upgrade path fits your property?



Most Mansfield TX electrical panel upgrade choices come down to amp rating, space for future breakers, and whether the meter or service drop must change—match a 100-amp refresh, 200-amp whole-home swap, garage subpanel add-on, or full service upgrade to your real loads, rental turnover, and EV or HVAC plans before you schedule cutover.

Option Best for Watch-out
100A panel refresh Light loads, small homes keeping similar use Leaves little headroom for EV or shop tools
200A main panel upgrade Family homes, heat pumps, multiple large appliances Needs clear wall space and inspection timing
Garage or ADU subpanel Workshops, rentals, circuits far from the main Still depends on main service capacity upstream
Service + panel upgrade Older drops, frequent trips, major remodels Longer outage window; coordinate utility if required

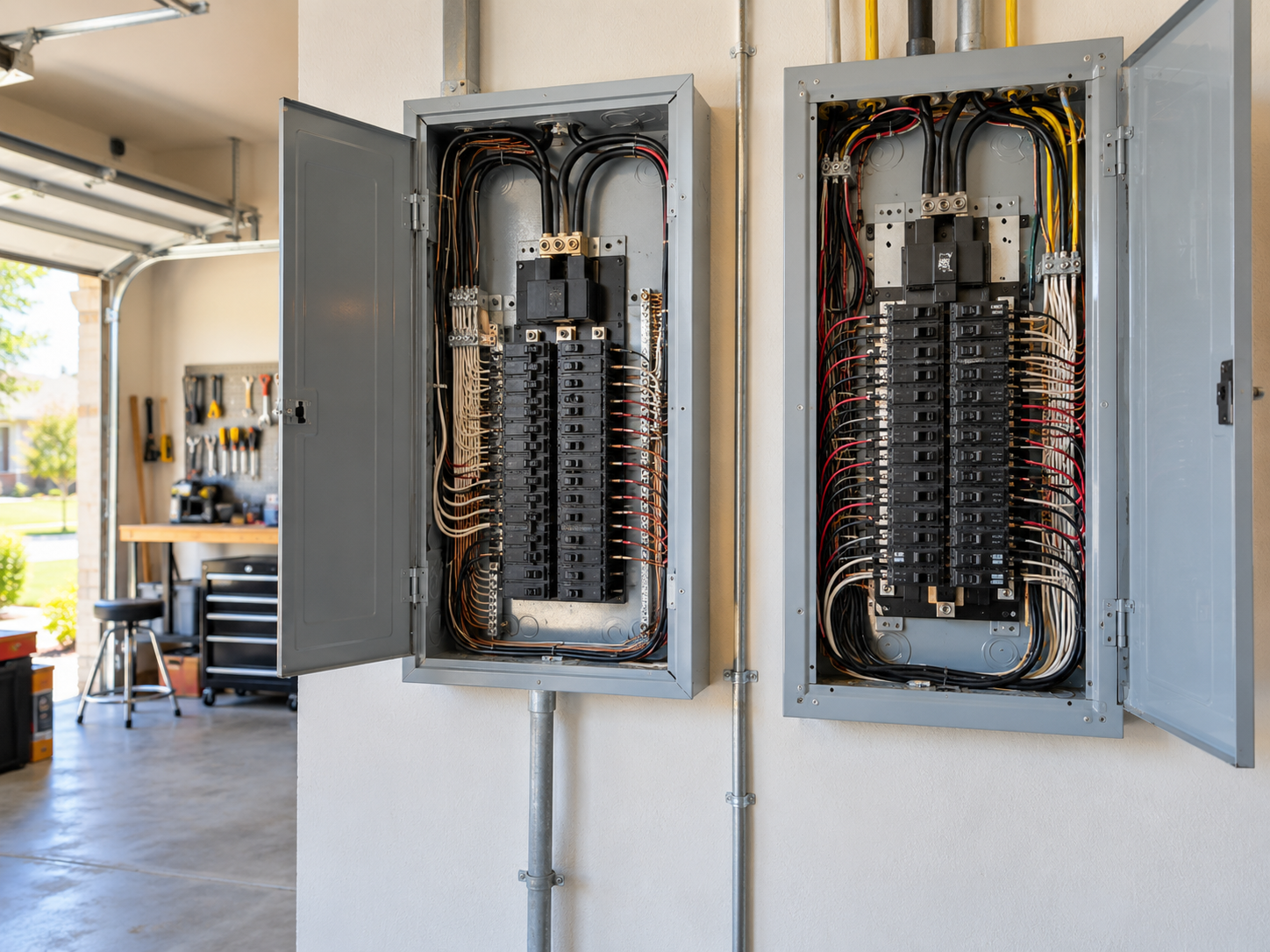

two residential breaker panels side by side on a garage wall during a Mansfield home service comparison

Keep paragraphs short and decisions local. Map circuits you already run and those you expect within five years. Note aluminum feeders, grounding, and whether the panel sits in a damp garage or finished room.


When you are ready for a walkthrough and written scope, contact A.T. Electric LLC so load calc, permit path, and install day align with Mansfield and DFW property needs—not a one-size kit.


Which Mansfield TX Electrical Panel Upgrade Path Fits Older Homes Versus New Add-Ons?


A Mansfield TX electrical panel upgrade for an older ranch or brick home usually starts with service capacity, grounding, and whether the existing main can support heat pumps, EV charging, or a garage shop, while a newer add-on or ADU more often needs a correctly sized subpanel fed from a healthy main—so match amp rating, feeder condition, and five-year load plans before you lock the scope.



Older Mansfield and DFW properties often hide aluminum feeders, limited wall space, or panels in damp garages. Those details change both the work and the inspection path. Map every circuit you run today and the ones you expect after a remodel or rental turnover.

New workshops and accessory units still depend on upstream capacity. A subpanel only works when the main service and meter arrangement can carry the extra load without nuisance trips. That is why a walkthrough beats a catalog kit.

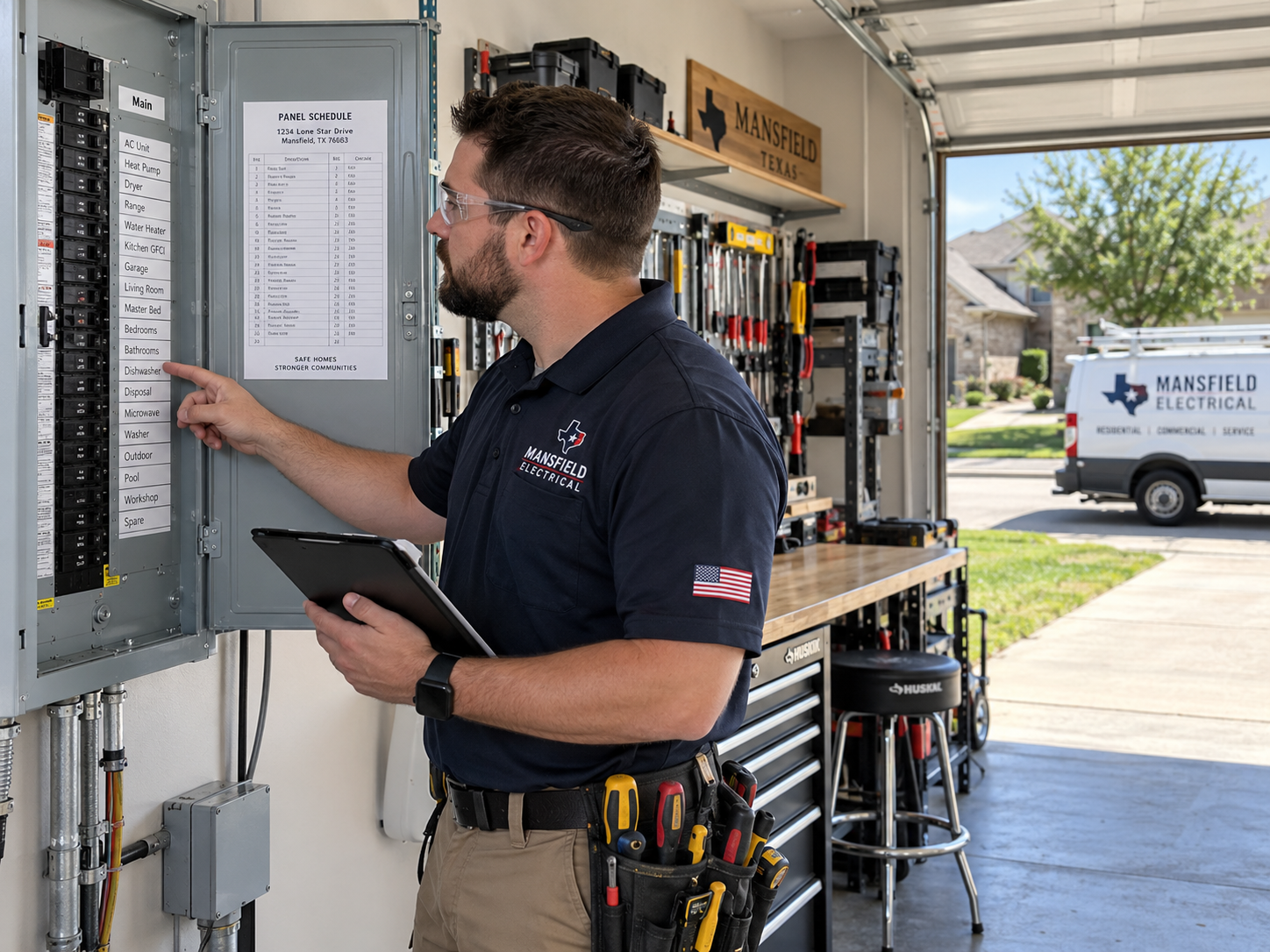

electrician reviewing a labeled main breaker panel beside an open garage workshop in a Mansfield Texas residential driveway

Practitioners at A.T. Electric LLC size the job from real loads, not guesswork. When you need the panel upgrade and related electrical services scoped for your property, the local team and method keep permits, cutover windows, and finish work aligned with how you actually use the house.


A Mansfield TX electrical panel upgrade for capacity-driven remodels starts with verifying the meter base, main breaker rating, and grounding electrode system so added heat, EV, or shop loads do not trip or overheat conductors under peak summer demand.


Space, moisture, and feeder metal still decide the path. Aluminum branch or service conductors may need replacement or listed connectors. Damp garage walls often force a surface-mounted NEMA enclosure and a short, code-clean feeder run rather than a tight flush swap.


What a typical Mansfield upgrade includes


A complete Mansfield TX electrical panel upgrade usually covers main or subpanel replacement, new breakers matched to wire ampacity, grounding and bonding corrections, labeling, and city inspection coordination so the cutover stays short and the finished panel supports your five-year load plan without rework.


Expect temporary power planning for refrigerators and medical devices. Clear labeling speeds future service calls and rental turnover. Keep spare breaker spaces if an ADU or workshop is still on the horizon.

Situation Common path Watch-outs
Older ranch / brick main Full main panel + grounding Aluminum feeders, limited wall depth
Garage shop or EV Higher amp main or dedicated circuits Feeder size, derating, disconnect location
ADU / add-on Sized subpanel from healthy main Upstream capacity, feeder condition

When a subpanel is the right move


A subpanel is appropriate when the main service already has spare ampacity and you only need local circuits for a shop, suite, or addition; the feeder, breaker, and grounding must still meet Mansfield and NEC rules so the sub does not overload the upstream main.

Map continuous loads first. Nuisance trips often mean the main—not the sub—is undersized. Document every new circuit before the permit drawing is locked.


Next step for Mansfield and DFW owners


Schedule a load walkthrough, then move from scope to permit and cutover with a clear outage window. For scheduling and questions, use the contact page so the crew can align inspection timing with your occupancy needs.
