A Mansfield Property Owner’s Guide to Panel Capacity for EV Charging

October 9, 2026

Mansfield and DFW property owners often need clear answers on whether their electrical service can support EV charging. Understanding panel capacity for Level 2 charger Mansfield setups starts with load, breaker space, and safe amp headroom. A.T. Electric LLC helps owners review panels before adding a dedicated circuit for home or rental charging.

Key takeaways

Level 2 charging usually needs a dedicated 240V circuit and spare panel capacity.
Available amps, main breaker size, and continuous-load rules drive feasibility.
Older or full panels may need upgrades before a charger install.
A licensed local electrician should verify load before you buy equipment.

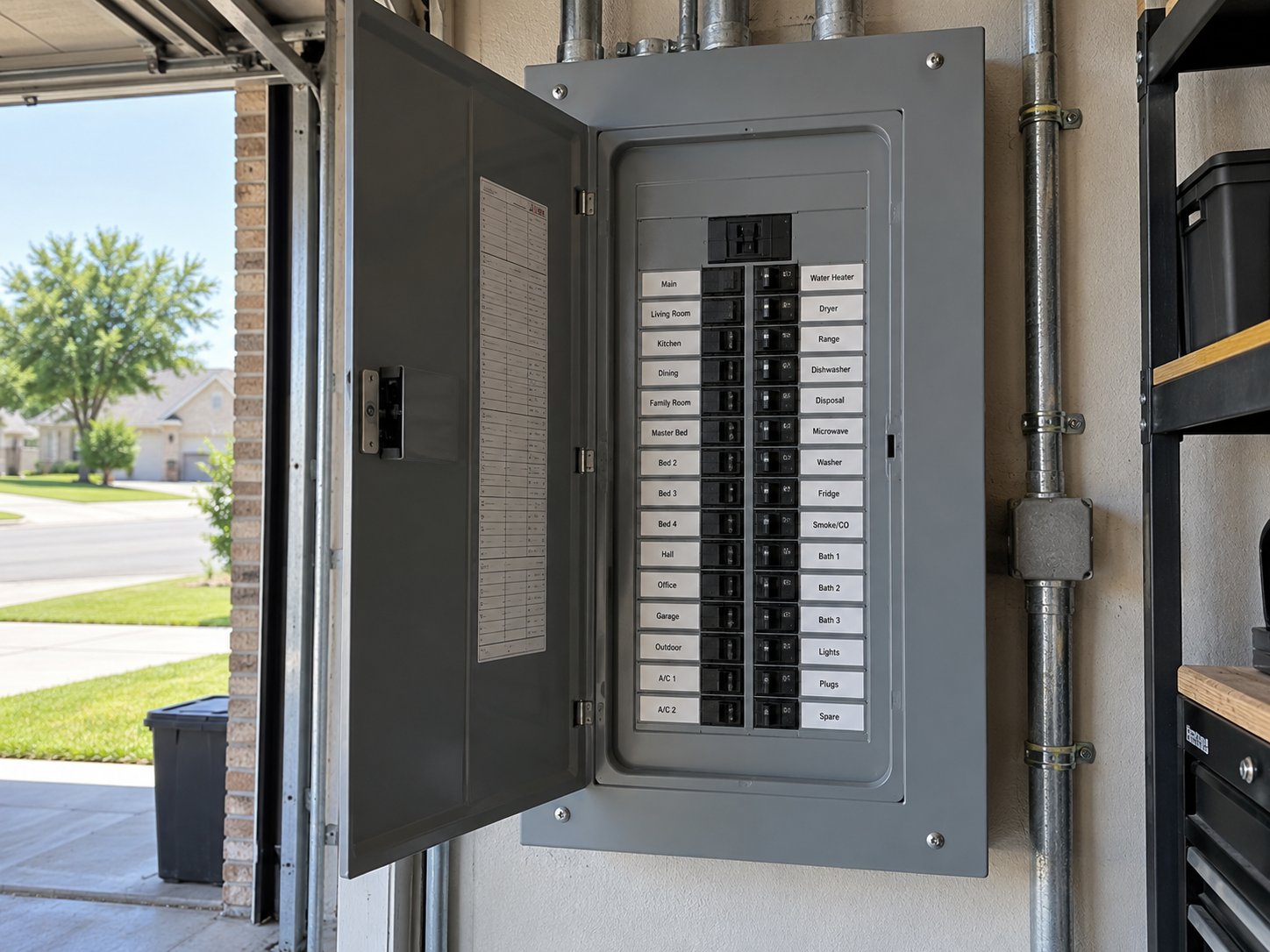

Photographic view of a residential electrical panel open in a Mansfield TX garage with labeled breakers and conduit nearby

What determines if your panel can support Level 2 charging?

Panel capacity depends on your main service size, existing continuous loads, free breaker slots, and whether a dedicated 40–50 amp circuit fits without exceeding safe demand. Mansfield owners should confirm calculated load, wire path, and grounding before installation. Review EV charging and electrical services with the local team approach, then request a panel capacity check.

Which panel setups work best for Level 2 charging in Mansfield?

Most Mansfield homes support Level 2 charging when the main service is 200 amps with spare slots and calculated headroom, while 100-amp or full panels often need a service upgrade, subpanel, or load management before a dedicated 40–50 amp circuit is safe. Match the setup to load, not charger marketing alone.

Option	Best for	Watch-out	Typical next step

200A main with open slots	Standard Level 2 40–50A circuit	Continuous-load headroom still required	Load calc, then dedicated breaker

100–150A main, light loads	Smaller chargers if demand allows	Less spare capacity for HVAC peaks	Verify NEC continuous load rules

Full panel, no free spaces	Owners needing more circuits	Cannot add breaker without space	Subpanel or panel replacement

Older/undersized service	Long-term multi-EV or rental use	May trip main under peak demand	Service upgrade before charger

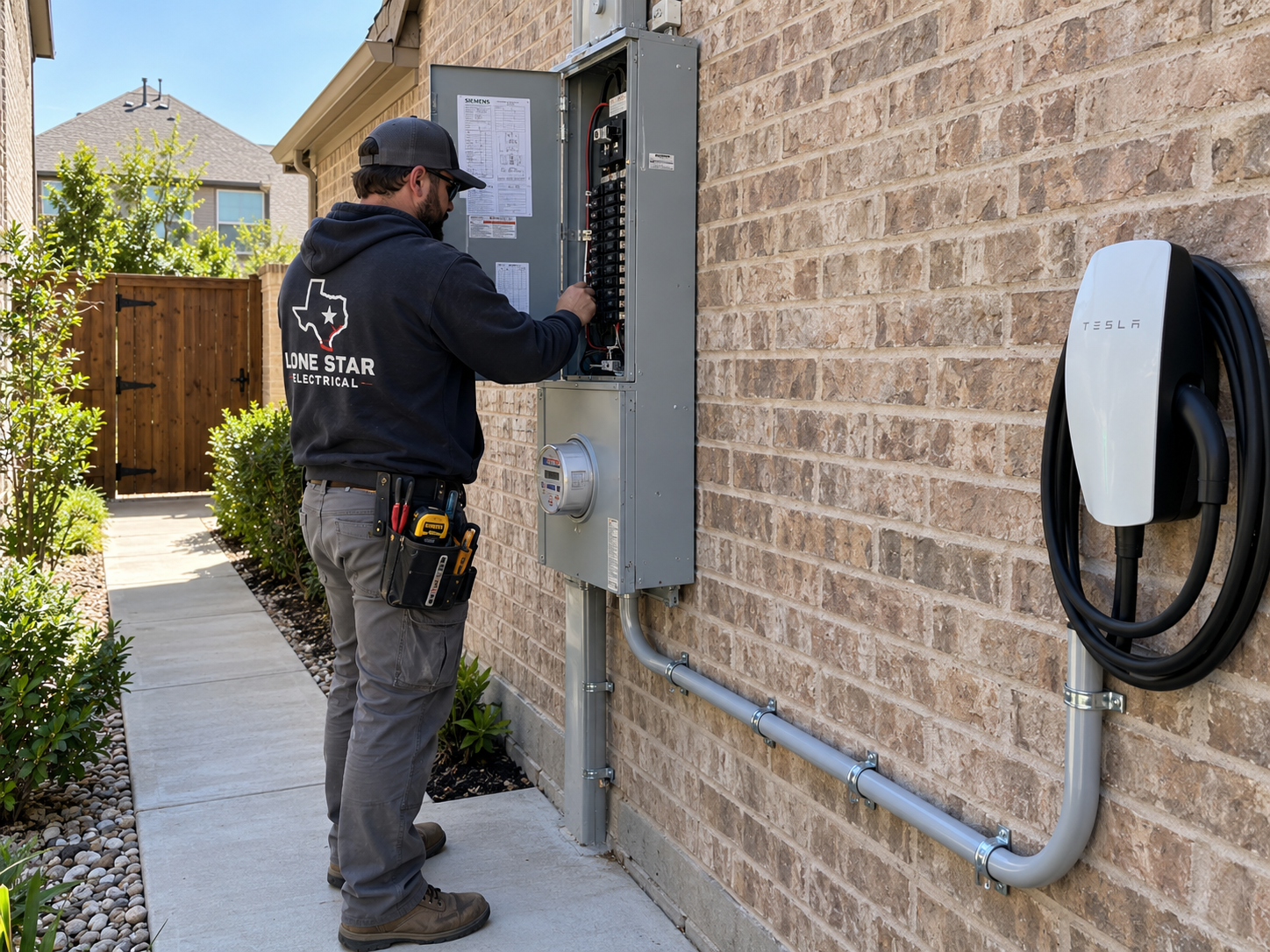

Photographic scene of a Mansfield TX driveway with an EV parked beside a garage, electrician reviewing a service panel label at the side of the house

Choose based on main breaker size, existing HVAC and dryer demand, and free spaces—not brand alone. A.T. Electric LLC reviews real panel photos and usage patterns for DFW property owners. If you need a clear go or upgrade path, schedule a panel capacity visit before you order hardware.

Which Upgrade Path Fits a Mansfield Home Adding Level 2 Charging?

Most Mansfield and DFW property owners choose a service upgrade when the main is under 200 amps or already loaded, a subpanel when the main has capacity but no free breaker spaces, or smart load management when peak HVAC and dryer demand leaves little continuous headroom for a dedicated 40–50 amp Level 2 circuit without replacing the entire service.

A full service upgrade raises the main breaker and often the meter base so the home can support EV charging plus future loads. It suits older Mansfield houses still on 100-amp or undersized feeders. Expect coordination with the utility and a clear inspection path.

A subpanel works when the main panel is full yet the service size and load calculation already allow a new 40–50 amp feeder.

The subpanel adds breaker spaces near the garage without changing the utility service. It is common in remodeled or multi-circuit homes.

Load management or a power-sharing device can keep the existing main intact by throttling the charger when other large loads run. This path helps light-use households that want Level 2 speed without an immediate service change. It still requires a proper continuous-load review.

Match the path to measured demand, free spaces, and long-term EV plans—not charger marketing. The team at A.T. Electric LLC walks Mansfield owners through photos, breaker labels, and usage so the next step is clear before hardware is ordered.

How load calculation decides panel capacity for Level 2 charger Mansfield

A load calculation decides panel capacity for Level 2 charger Mansfield by totaling continuous and noncontinuous demand so a 40–50 amp EV circuit fits without overloading the main. Practitioners apply NEC continuous-load rules, square footage, fixed appliances, HVAC, and dryer or range loads before committing to a breaker.

Mansfield and DFW homes often mix older 100-amp services with newer 200-amp upgrades. The calculation shows whether spare amperage exists after diversity factors, not only empty breaker slots. Garage distance, conductor size, and outdoor disconnect needs also affect the final feeder design.

Owners who share panel photos and breaker schedules get a clearer picture of continuous headroom. That review prevents undersized feeders and repeated trips to the utility for meter or service changes later.

Signs your Mansfield panel needs more than a new breaker

Many panels lack continuous headroom when the main is already near nameplate under evening peaks. Full bus bars, double-tapped neutrals, or no free spaces signal that a simple 40–50 amp breaker is not enough for safe Level 2 charging.

Older Mansfield ranch homes may still carry original 100-amp gear while the household added heat pumps, pools, or workshops. In those cases the limiting factor is service size, not only the charger brand. A measured path avoids nuisance trips and inspector delays.

Document peak usage and planned second vehicles before ordering hardware. Matching demand to service rating keeps the install inspection-ready and aligned with long-term property needs.

Service upgrade, subpanel, or load management

A subpanel works when the main panel is full yet the service size and load calculation already allow a new 40–50 amp feeder. The subpanel adds breaker spaces near the garage without changing the utility service. It is common in remodeled or multi-circuit homes.
