What Shop Equipment Circuits Can Solve—and When Mansfield Property Owners Should Call

October 5, 2026

Shop equipment circuits handle dedicated loads, breaker sizing, and safe runs so tools start cleanly and panels stay within capacity. When trips, heat, or odd voltage appear, an equipment circuit electrician Mansfield owners trust is A.T. Electric LLC. Local property owners get clear next steps before damage spreads.


Key takeaways

  • Dedicated circuits isolate high-draw shop tools from lighting and outlets.
  • Repeated trips or warm breakers signal load or wiring problems.
  • Code-compliant installs protect people, equipment, and insurance standing.
  • Call early when panels feel full or new machines need power.
photographic view of a Mansfield TX garage workshop with labeled breaker panel and idle power tools on a workbench

When should Mansfield owners call for equipment circuits?


You should call when breakers trip under normal tool use, outlets feel warm, new equipment needs a dedicated run, or the panel looks full—before you add loads yourself. Services cover assessment and safe circuit work.


Which shop circuit option fits Mansfield property owners?


Dedicated 20A receptacle circuits suit mid-draw tools, 30–50A runs fit welders and compressors, multi-wire setups need careful neutrals, and subpanels help when the main is full—so an equipment circuit electrician Mansfield owners hire matches load, distance, and panel space before breakers trip or conductors overheat under real shop use.

Option Best for Watch-out
Dedicated 20A 120V Saws, grinders, chargers Sharing with lights or heaters
240V 30–50A Welders, large compressors Undersized wire or weak lugs
Multi-wire branch Two 120V tools, shared path Loose neutral, shared trips
Subpanel feed Full main, growing shops Improper grounding or overcrowding

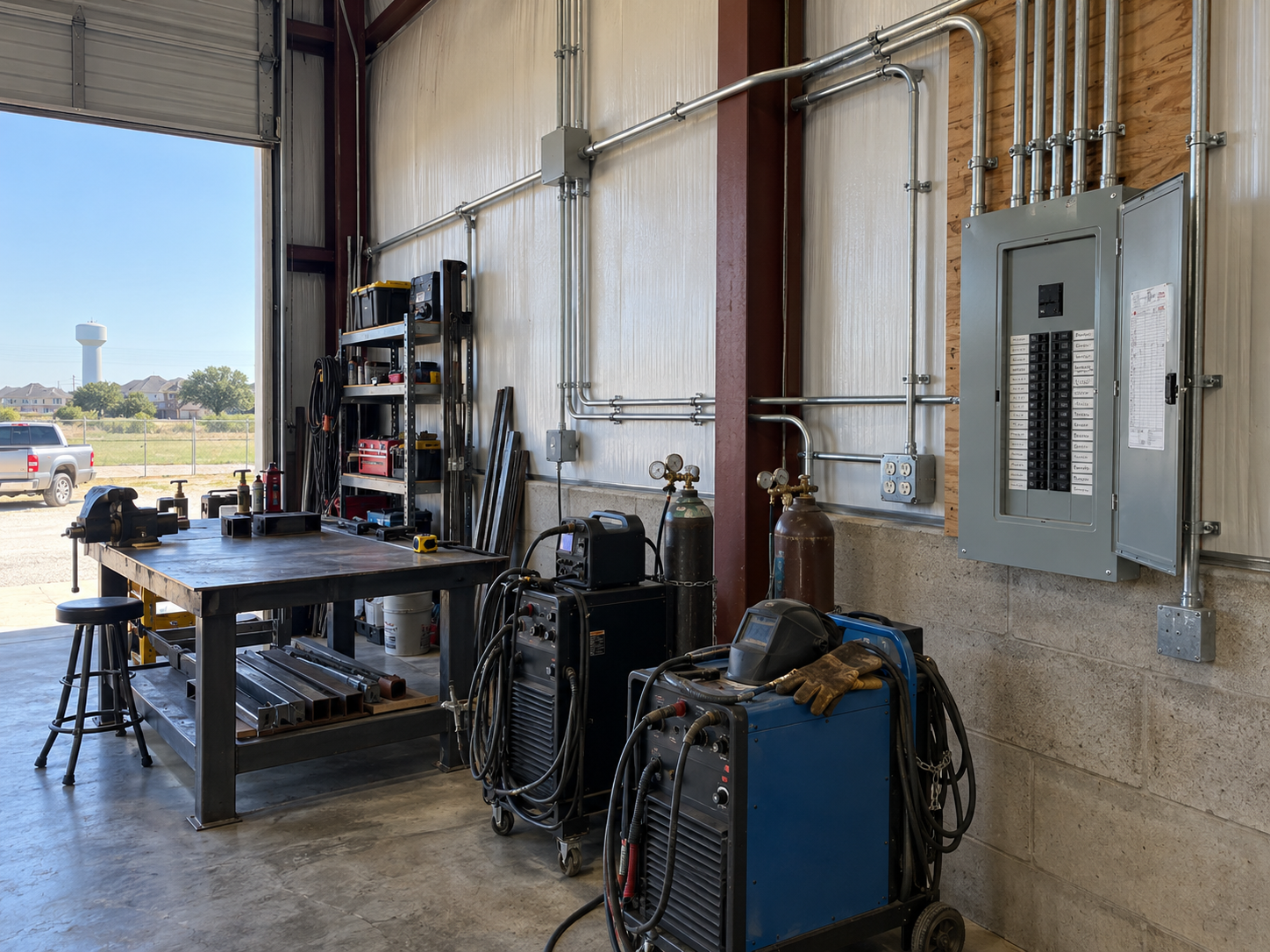

photographic interior of a Mansfield TX shop wall with conduit runs feeding a labeled subpanel beside idle welders

Short runs and correct breaker-to-wire pairing keep voltage stable when motors start. Long garage feeds need larger conductors so tools do not bog down. The About approach stresses load checks before adding machines.


If the main panel has no spare slots, a subpanel is often cleaner than daisy-chaining high-draw outlets. Do not upsize breakers to stop trips without verifying the circuit. For a clear next step on layout or capacity, Contact A.T. Electric LLC for a shop walk-through.


Which Shop Loads Need an Equipment Circuit Electrician Mansfield Owners Should Book First?


An equipment circuit electrician Mansfield property owners call first for welders, large air compressors, plasma cutters, and multi-tool benches that trip shared breakers, sag voltage on startup, or sit far from the main panel—matching amperage, wire size, and isolation so motors start cleanly without overheating neutrals or crowding the service.



Shared 15A or 20A receptacle runs rarely survive repeated motor inrush. Dedicated paths keep lights and chargers stable while heavy tools pull hard.

Distance matters as much as nameplate amps. Long garage or barn feeds drop voltage unless conductors are sized for the full run, not just the breaker rating.

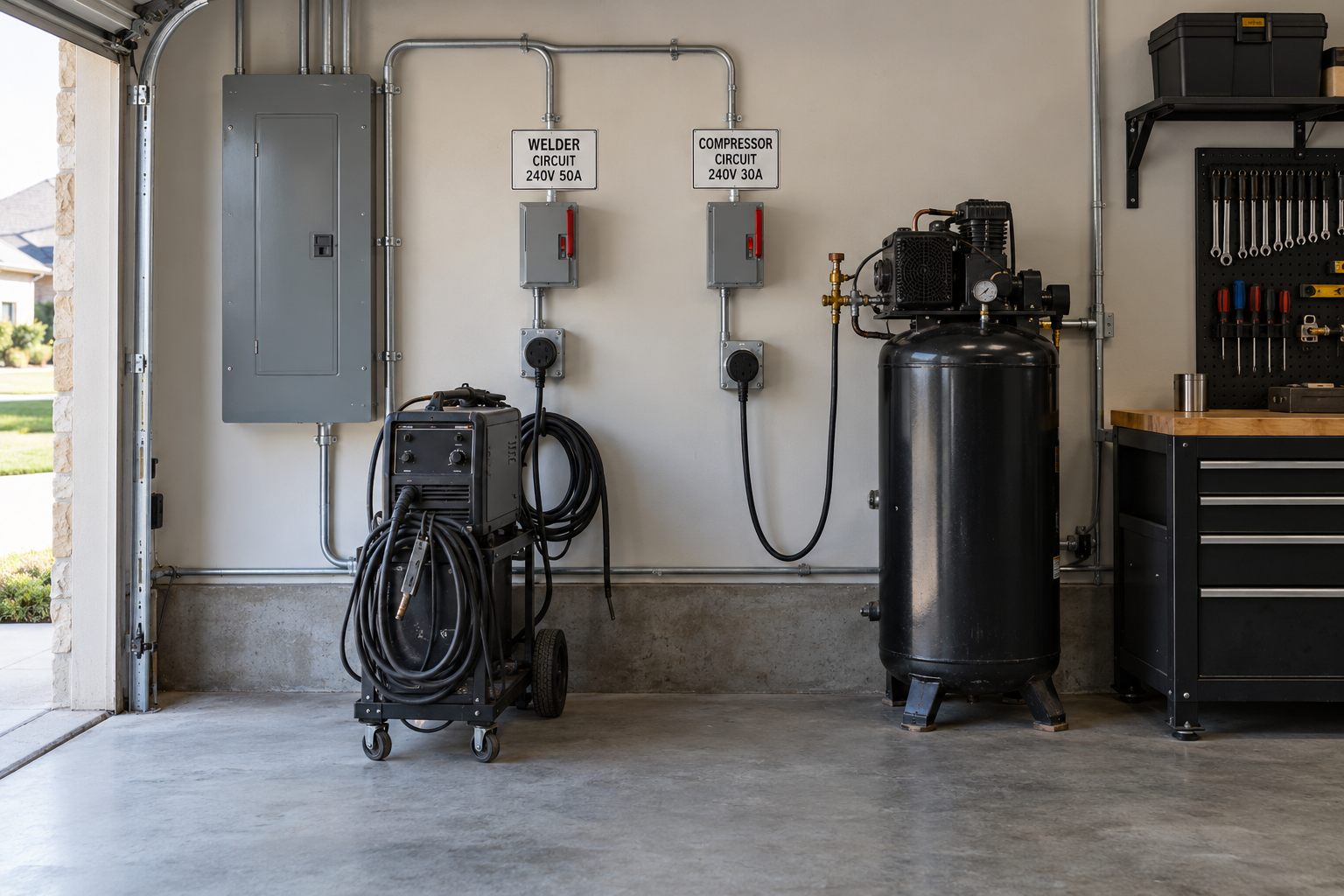

photographic view of a Mansfield TX garage bay with a welder and compressor on separate labeled circuits along a finished wall

When the main panel is full, adding machines without a plan invites nuisance trips. A clean feed through Services often includes a subpanel so future tools have room.


Do not keep resetting the same breaker or swapping to a larger one without load and wire checks. That shortcut hides heat and loose connections.


A.T. Electric LLC helps Mansfield and DFW owners sort which loads need isolation now versus which can wait. Schedule a walk-through before the next machine arrives so the shop grows without downtime.


When Dedicated Shop Circuits Pay Off Fast


An equipment circuit electrician Mansfield owners hire when welders, compressors, or CNC gear share lighting runs, trip breakers on startup, or sit far from the panel so voltage sags and neutrals overheat before tools ever reach steady load. Isolation restores clean starts and keeps the rest of the building stable.


Short receptacle chains cannot absorb motor inrush day after day. Separate breakers and correctly sized conductors protect both the machine and the service.


Distance, Subpanels, and Load Planning


Long garage or barn runs need wire sized for length, not only nameplate amps. A full main panel often calls for a subpanel so new tools have spare slots without crowding existing breakers.


The About approach walks the shop first, matches amperage and isolation, then schedules work so production keeps moving. Reach Contact before the next machine arrives.

Load type Typical need Risk if shared
Welder / plasma Dedicated high-amp circuit Nuisance trips, dim lights
Large compressor Isolated motor circuit Voltage sag on start
Multi-tool bench Separate 20A+ runs Overheated neutrals

Frequently Asked Questions

  • When does a Mansfield shop need a dedicated equipment circuit?

    A dedicated circuit is needed when motors trip shared breakers, lights dim on startup, or tools sit far from the panel and voltage drops. Matching wire size, amperage, and isolation prevents heat and keeps lighting and chargers stable while heavy equipment runs.

  • Can I just install a larger breaker for my welder?

    No. Upsizing a breaker without checking wire ampacity and load hides loose connections and overheating. An equipment circuit electrician Mansfield owners trust verifies the full path so the feeder, not only the handle rating, safely supports the machine.

  • Why add a subpanel instead of more breakers in the main?

    A full main panel leaves no room for future tools. A subpanel near the shop shortens long runs, reduces voltage drop, and gives spare slots so compressors, welders, and benches can be added without repeated service upgrades or downtime.
