What Underground Power Runs Can Solve—and When Mansfield Property Owners Should Call

September 30, 2026

Underground feeder runs give Mansfield and DFW owners safe, code-ready juice for workshops, storage, and hobby spaces without overhead clutter. For power to shed or detached garage Mansfield, A.T. Electric LLC sizes the circuit, trenching path, and disconnect so tools, lighting, and EV gear work without overloading the main panel.


Key takeaways

  • Underground runs hide conductors and cut storm and tree risk.
  • Load calc and panel capacity decide amperage before dig day.
  • Permits and inspections keep Mansfield installs compliant.
  • Call early when the shed needs 240V tools or future EV charge.
photographic view of a Mansfield backyard trench line leading from a brick home toward a wood shed with a new exterior disconnect

When should Mansfield owners call for underground power?


You should call when the shed or garage needs dedicated circuits, 240V equipment, or a clean path that overhead lines cannot provide without clearance issues, and when your main panel may need evaluation before any feeder is added. Services cover planning through final hookup. Next step: contact the team for a site review.


Which feeder path works best for power to shed or detached garage Mansfield?


For power to shed or detached garage Mansfield, underground conduit usually wins when you want storm protection, clean sight lines, and room for future amperage, while overhead only fits short clear runs with no tree conflict; panel capacity, trench length, and tool loads still decide the final design before any dig or pole work starts on site.

Option Best for Watch-out
Underground PVC conduit Long yard runs, workshops, future EV Depth, rock, and utility locate time
Direct-burial cable Simple short paths on open lots Harder upgrades; damage risk if unmarked
Overhead drop Minimal dig, temporary or tight budgets Trees, clearance, ice and wind exposure
Subpanel at the structure Multiple 120/240V circuits in the garage Main-panel headroom and disconnect rules

Short underground runs often cost more up front than a simple overhead span, yet they protect conductors and keep HOA sight lines clean. Longer trenches need load math so the feeder does not starve welders, compressors, or heaters.


The About method starts with panel evaluation, then route and permit steps so Mansfield installs pass inspection. Ask for a walk-through when you need dedicated power without guessing trench depth or breaker size.


Which Loads Need a Subpanel Versus a Single Circuit for Power to a Shed or Detached Garage Mansfield


A single dedicated circuit can run lights and a few outlets in a small shed, but welders, air compressors, EV chargers, heaters, and multi-tool shops need a subpanel fed by a properly sized underground feeder so 120V and 240V loads share capacity without tripping the main house panel or starving other circuits during peak use in Mansfield yards.


Panel headroom comes first. If the main service is already near limit, adding a large feeder may require upgrades before any trench for power to shed or detached garage Mansfield work begins.

Route length and voltage drop matter next. Longer runs favor larger conductors in PVC conduit so tools keep full power at the far structure.

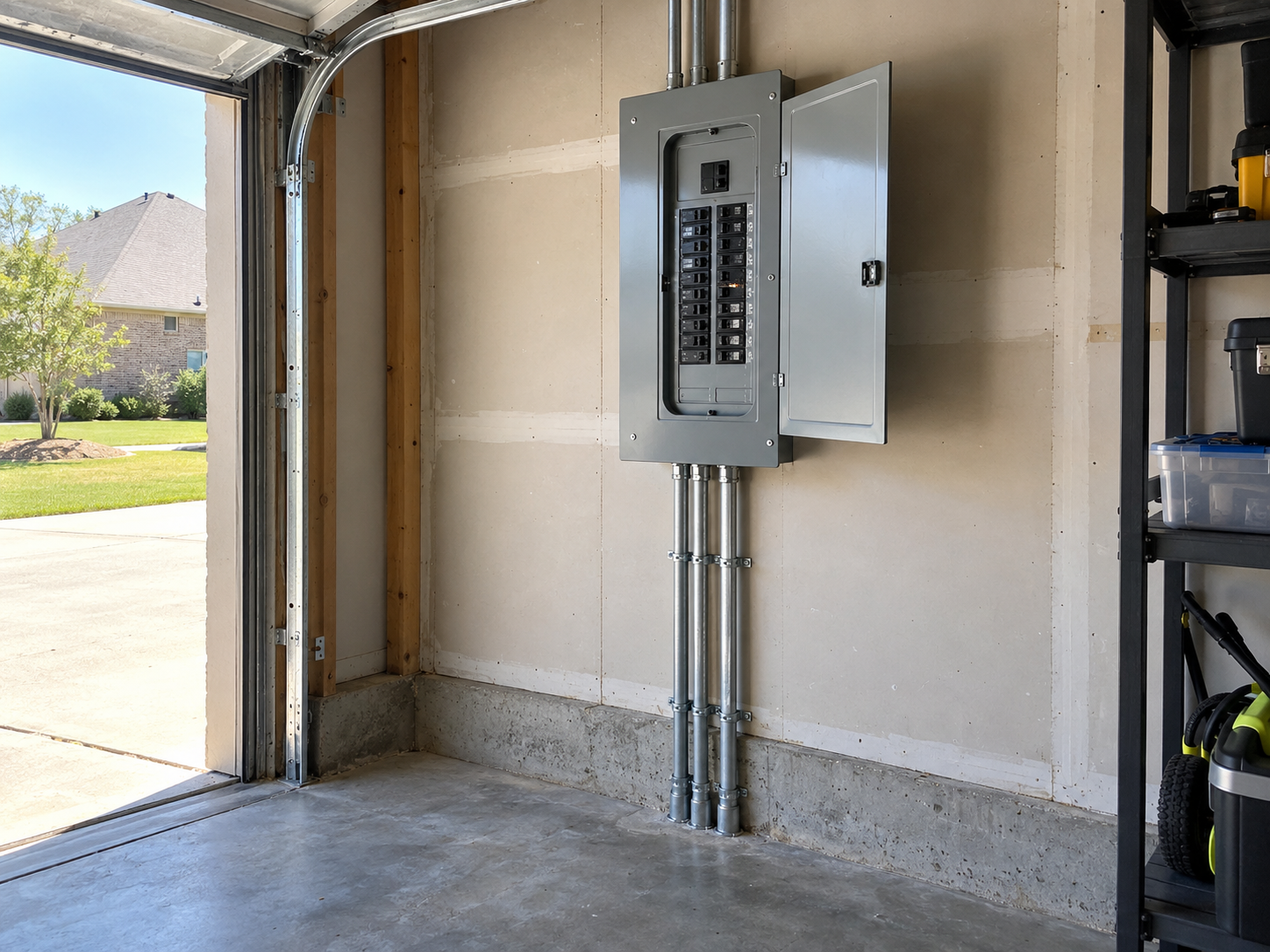

photographic view of a Mansfield detached garage interior with a wall-mounted subpanel, open breaker door, and conduit entry near the slab

Permit and disconnect rules still apply at the outbuilding. A clear shutoff and correct grounding keep the install inspection-ready.

A.T. Electric LLC designs these feeders as part of residential Services for Mansfield and DFW owners who want durable underground paths rather than temporary cords.


When you are ready for load calculation, locate coordination, and a firm next step, Contact the crew for a site walk-through before digging.


Load checks before the trench


A licensed electrician starts power to shed or detached garage Mansfield work with a full load calculation so the feeder, breaker, and conductors match real tools, lighting, and future 240V gear without overloading the house service or creating nuisance trips on hot DFW afternoons.


Short runs still need correct ampacity and conduit depth. Frost, soil, and driveway crossings change burial depth and protection. The About team sizes copper or aluminum feeders for voltage drop so compressors and chargers start cleanly at the far end.

Grounding, bonding, and a listed disconnect at the outbuilding keep the job inspection-ready. Temporary extension cords are not a permanent path for shops or EV gear.


Frequently Asked Questions

  • How much power does a typical Mansfield shed or garage need?

    Most small sheds run on one 20-amp 120V circuit for lights and outlets. Workshops, welders, heaters, and EV chargers usually need a subpanel on a 60- to 100-amp underground feeder so 120V and 240V loads share capacity without starving the main house panel during peak use.

  • Do I need a permit for underground power to a detached garage in Mansfield?

    Yes. City rules generally require permits, inspections, proper burial depth, conduit, a disconnect at the outbuilding, and correct grounding. A licensed electrician coordinates the design so the feeder and subpanel pass inspection the first time and stay safe for long-term use.

  • Can I run power from my house panel without a service upgrade?

    Sometimes. If the main panel has spare ampacity and breaker space, a dedicated feeder may be enough. When the service is already near limit, an upgrade comes first so the new underground run does not overload the meter or main breakers under full shop load.
